Clear PVC Strip Doors

- Easy to Install - Easy to Clean - An Economical and Energy Saving Solution to Sealing Doorways.


Clear PVC Strip Doors are available in a diverse range of widths and thickness of PVC Strips, to suit applications from pedestrian doors to motorised vehicle doors. Clear PVC Strip Doors provide an economical and simple installation solution.

Coldroom Strip Door
Isolate, Partition or seal off an area

Our exclusive cover strip makes them easy to clean and keeps the construction of the Strip Doors behind the scenes.

Temperature Control – Dust Control – Hygiene Control

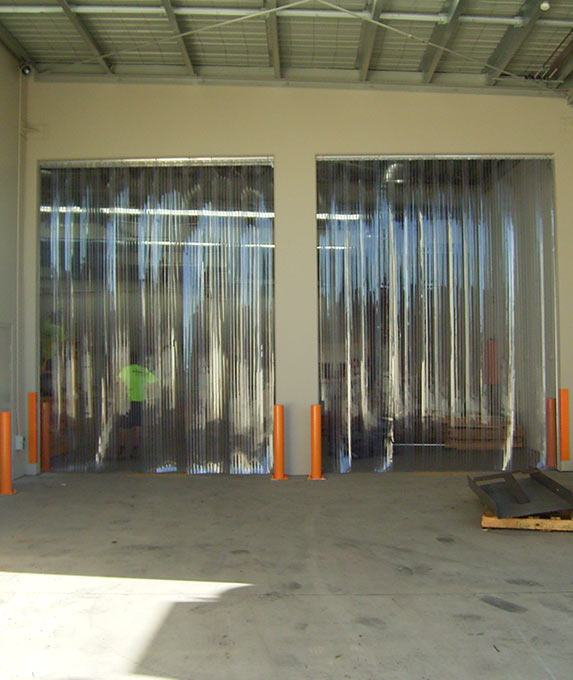

Strip Doors can reduce electricity consumption significantly in temperature controlled rooms such as; Cool Rooms, Freezer Rooms, air conditioned rooms and many more.Fork Lifts and Pallet Trolleys can pass through the plastic strips, and are commonly used in food distribution businesses, some of these include; Butchers doors, Bakery doors, and Seafood distribution doors. Our PVC Strip Doors are also used as industrial dust control door solutions for; Mines and workshops to protect machinery from the dust. Here are the links to other Strip Door products; Coloured Strip Doors – Removable Strip Doors – Sliding Strip Doors

Replacement PVC Strips for Strip Doors

If you have an existing PVC Strip Door, you can replace old worn strips with new PVC. Simply click here to view our range of PVC.

If you have trouble finding the right PVC strip for your door, click here to fill out our enquiry form. One of our friendly staff will be in contact with you to choose the best material for your application.

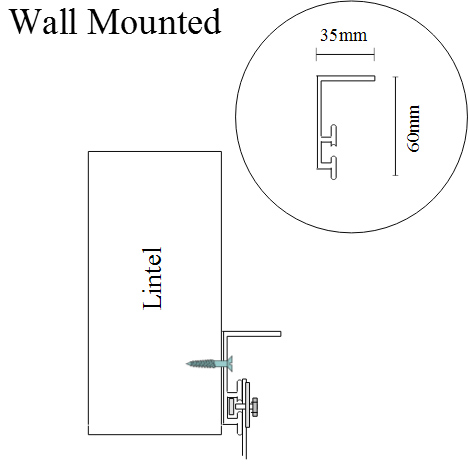

PVC Strip Door Mounting Wall

Wall Mounted PVC Strip Door

In most applications the Strip Door can be Wall Mounted above the opening. The width is increased by 50mm and the height is also increased by 50mm to allow the Head Section to mount above the opening, resulting in a 5-10 mm floor clearance. Holes are pre-drilled when the Strip Door is manufactured to suit the mounting solution.

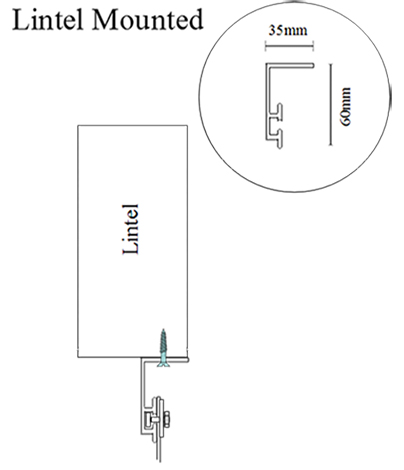

PVC Strip Door Mounting Lintel

Lintel Mounted PVC Strip Door

For some applications, Lintel Mounting may be the only solution. The width is reduced by 5mm to allow the Head Section to fit within the opening and the height is reduced by 10mm to allow floor clearence. Holes are pre-drilled when the Strip Door is manufactured to suit the mounting solution.

There are a diverse range of Clear PVC Strip Door applications including,

Air Conditioning door – Temperature Isolation – Environmental Separation – Pest Control door – Dust Control door – Noise Isolation – Partitioning

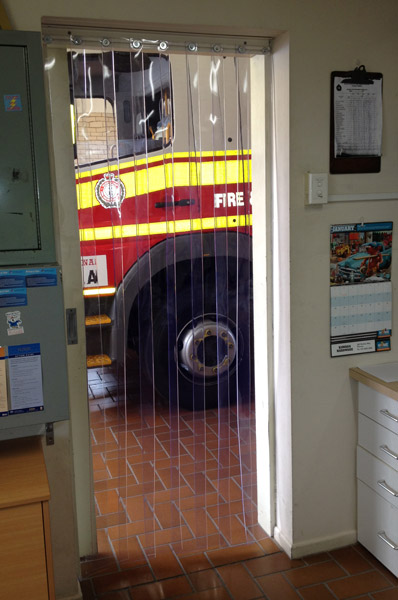

These uses are applicable in areas where standards of hygiene, noise and safety are required, for example institutions such as hospitals, fire stations and restaurants.

Below, is an application chart for; general recommendations of the various common clear flexible PVC plastic strips. If you require clear PVC material that is not listed below please Contact Us. Austcold Industries only stocks quality clear PVC plastic materials to ensure customer satisfaction and long life expectancy.

PVC Strip Doors are all manufactured to order and can be installed in applications where; Clear PVC Swing Doors are not practical due to area restrictions or budget. Clear plastic strip doors are used for a wide range of applications including; fork lift doors, pallet trolley doors, personnel access doors, bakery door strips, butchers door strips and more. The Blue highlighted material represents Freezer Grade Clear PVC.

PLASTIC STRIP APPLICATIONS:

Use this chart to identify the PVC Strips you require, click on the related link to buy or for more information.

PVC Strip Size (Width x Thickness) Link PVC Strip Grade PVC Strip Max Length (Metres) PVC Strip Applications
100mm x 2mm BUY ONLINE Tinted; Black, Yellow, Red, Blue, Bronze 2.4 Foot traffic, hand trolleys, bakery doors etc. Not for freezer rooms.
100mm x 2mm BUY ONLINE Normal Temp PVC 2.5 Light duty foot traffic, hand trolleys, boxes etc.
100mm x 2mm BUY ONLINE Freezer Temp PVC 2.5 As above with temperature tolerance to -40°
100mm x 2mm BUY ONLINE Ribbed Normal Temp PVC 2.5 As above with Ribs that reduce the drag or friction on items passing through.
200mm x 2mm BUY ONLINE Normal Temp PVC 3 Foot traffic, Hand trolleys etc.. Medium duty
200mm x 2mm BUY ONLINE Ribbed Normal Temp PVC 3 As above with Ribs that reduce the drag or friction on items passing through.
200mm x 2mm BUY ONLINE Freezer Temp Ribbed 3 As above with temperature tolerance to -40°
150mm x 3mm BUY ONLINE Normal Temp PVC 4 Fork lift door, pallet trolley door etc..
150mm x 3mm BUY ONLINE Ribbed Normal Temp PVC 4 Fork lift door, pallet trolley door etc..
150mm x 3mm BUY ONLINE Freezer Temp Ribbed 4 As above with temperature tolerance to -40°
300mm x 3mm BUY ONLINE Normal Temp PVC 5 Fork lift door, pallet trolley door etc..
300mm x 3mm BUY ONLINE Ribbed Normal Temp PVC 5 Fork lift door, pallet trolley door etc..
300mm x 3mm BUY ONLINE Freezer Temp Ribbed 5 As above with temperature tolerance to -40°
150mm x 5mm ENQUIRY FORM Normal Temp PVC 6 Fork lift door, Traffic Door
300mm x 5mm ENQUIRY FORM Normal Temp PVC 6 Extra heavy duty for stability and wind resistance.

Our Strip Door aluminium Head Section accommodates a 6mm (hex head) set screw. The PVC strips are Hole-Punched and secured with large washers, allowing the PVC strips to be replaced with ease.

For Heavy Duty PVC Strip Door applications such as commercial and industrial factory roller doors, mounting the PVC Strip Door below the existing roller door (Bulk Head) can be achieved by using a steel RHS beam suspended across the doorway. Austcold Industries can supply side mounting plates to support the beam, which are secured onto the concrete wall surface either side of the doorway.

APP 1
APP 2

PLASTIC STRIP SPECIFICATIONS

 Flexible PVC Thermal Insulation

Flexible PVC Thermal loss Comparison
